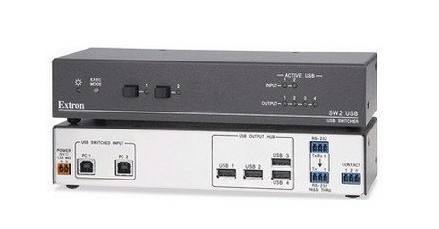

EXTRON SW USB 切換器
Extron SW2 USB、SW4 USB 和 SW4 USB Plus 是 2 路和 4 路輸入的 USB 切換器，允許在多個主機設備與多個 USB 外圍設備之間進行切換。它們?yōu)樵诋斀竦囊曇纛l環境中實現兼容 USB 2.0 的切換提供了易于集成的解決方案。所具備的幾種特性可確保輕松集成，包括端口狀態指示、RS-232 直通、前面板安全鎖定和多點控制。SW4 USB Plus 提供了主機和外圍設備仿真模式的特性，可以通過在切換器內不停模擬主機與鍵盤/鼠標的通訊，來確保主機與外圍設備之間的連續通信。該仿真功能使設備無需經過枚舉的過程，從而減少了切換過程中設備通訊失敗的可能性。
SW USB
2 路和 4 路輸入 USB 切換器
主要特性
|
|
型號 |
產品說明 |
產品編號 |
|
|
|
|
|
|
SW2 USB |
2 路輸入 USB |
60-952-01 |
|
|
|
|
|
|
|
SW4 USB |
4 路輸入 USB |
60-953-01 |
|
|
|
|
|
|
|
SW4 USB Plus |
帶仿真功能的 4 路輸入 USB |
60-954-01 |
|
|
|
|
|
Extron SW2 USB、SW4 USB 和 SW4 USB Plus 是 2 路和 4 路輸入的 USB 切換器，允許在多個主機設備與多個 USB 外圍設備之間進行切換。它們?yōu)樵诋斀竦囊曇纛l環境中實現兼容 USB 2.0 的切換提供了易于集成的解決方案。所具備的幾種特性可確保輕松集成，包括端口狀態指示、RS-232 直通、前面板安全鎖定和多點控制。SW4 USB Plus 提供了主機和外圍設備仿真模式的特性，可以通過在切換器內不停模擬主機與鍵盤/鼠標的通訊，來確保主機與外圍設備之間的連續通信。該仿真功能使設備無需經過枚舉的過程，從而減少了切換過程中設備通訊失敗的可能性。
|
USB |
|
USB specification |
USB 2.0 compatible |
|
USB data rates |
Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps) |
|
|
|
USB input |
|
Connectors |
|
|
SW2 USB |
2 female USB type B |
|
SW4 USB, SW4 USB Plus |
4 female USB type B |
|
|
|
USB output |
|
Connectors |
4 female USB type A |
|
|
|
Control/remote — switcher |
|
Serial control port |
(1) RS-232, 3.5 mm captive screw connector, 3 pole
(1) RS-232 pass-through, 3.5 mm captive screw connector, 3 pole |
|
Baud rate and protocol |
9600 baud, 8 data bits, 1 stop bit, no parity |
|
Serial control pin configurations |
|
|
RS-232 |
1 = Tx, 2 = Rx, 3 = GND |
|
RS-232 pass-through |
1 = Tx, 3 = GND |
|
Contact closure |
|
|
SW2 USB |
(1) 3.5 mm captive screw connector, 3 pole |
|
SW4 USB, SW4 USB Plus |
(1) 3.5 mm captive screw connector, 5 pole |
|
Contact closure pin configuration |
|
|
SW2 USB |
1 = input 1, 2 = input 2, 3 = GND |
|
SW4 USB, SW4 USB Plus |
1 = input 1, 2 = input 2, 3 = input 3, 4 = input 4, 5 = GND |
|
Program control |
Extron Simple Instruction Set (SIS?) |
|
|
|
General |
|
External power supply |
100 VAC to 240 VAC, 50-60 Hz, external; to 12 VDC, 1 A, regulated |
|
Power input requirements |
12 VDC, 0.70 A |
|
Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
|
Cooling |
Convection, no vents |
|
Mounting |
|
|
Rack mount |
Yes, with optional rack shelf |
|
Furniture mount |
Yes, with optional under-desk mounting kit |
|
Enclosure type |
Metal |
|
Enclosure dimensions |
1.6" H x 8.6" W x 3.0" D (1U high, half rack wide)
(4.1 cm H x 21.8 cm W x 7.6 cm D)
(Depth excludes connectors.) |
|
Product weight |
2.0 lbs (0.9 kg) |
|
Shipping weight |
3 lbs (2 kg) |
|
Vibration |
ISTA 1A in carton (International Safe Transit Association) |
|
Regulatory compliance |
|
|
Safety |
CE, c-UL, UL |
|
EMI/EMC |
CE, C-tick, FCC Class A, ICES, VCCI |
|
MTBF |
30,000 hours |
|
Warranty |
3 years parts and labor |
|
|
