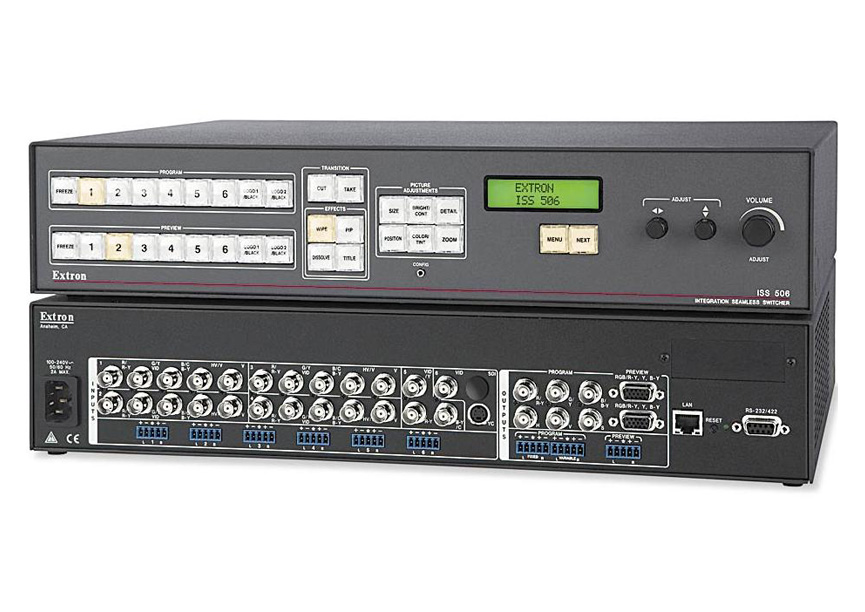

EXTRON ISS 506 無縫切換器
Extron ISS 506 是一款 6 路輸入無縫切換器，可以接受多種視頻信號，包括 RGB 計算機視頻、HDTV 和標清視頻。它將真正的無縫、無抖動切換與高級解析度轉換技術相結合，可滿足高品質、高分辨率視頻演示的要求。ISS 506 具有各種演示增強特性，如獨立的預覽和節目輸出、多種切換轉換效果、徽標插入、字幕鍵入、內部測試圖案和多種控制方法，為高端演示環境提供了多種高級功能。
主要特性
|
型號 |
產品說明 |
產品編號 |
|
|
|
|
|
|
|
ISS 506 |
標準型號 |
60-742-01 |
|
|
|
|
|
|
|
ISS 506 SC |
帶掃描轉換輸出 |
60-742-03 |
|
|
|
|
|
|
|
ISS 506 DI/DVI |
帶 SDI/HD-SDI 輸入，DVI-D 輸出 |
60-742-12 |
|
|
|
|
|
|
|
ISS 506 DI/SC |
帶 SDI/HD-SDI 輸入，掃描轉換輸出 |
60-742-13 |
|
|
|
|
|
|
|
ISS 506 DI/HD-SDI |
帶 SDI/HD-SDI 輸入和 HD-SDI 輸出 |
60-742-14 |
|
|
|
|
|
Extron ISS 506 是一款 6 路輸入無縫切換器，可以接受多種視頻信號，包括 RGB 計算機視頻、HDTV 和標清視頻。它將真正的無縫、無抖動切換與高級解析度轉換技術相結合，可滿足高品質、高分辨率視頻演示的要求。ISS 506 具有各種演示增強特性，如獨立的預覽和節目輸出、多種切換轉換效果、徽標插入、字幕鍵入、內部測試圖案和多種控制方法，為高端演示環境提供了多種高級功能。
|
Video input |
|
Number/signal type |
4 RGBHV, RGBS, RGsB, RGBcvS, component video (interlaced or progressive), S-video, composite video
1 component video (interlaced), S-video, composite video
1 S-video, composite video, or optional digital component video (SDI or HDSDI) |
|
Connectors |
4 x 5 female BNC
1 x 3 female BNC, 1 female BNC, 1 female 4-pin mini DIN
1 optional BNC for SDI/HDSDI |
|
Nominal level |
1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
|
Minimum/maximum levels |
Analog: 0.0 V to 2.0 Vp-p with no offset at unity gain |
|
Impedance |
75 ohms |
|
Horizontal frequency |
Autoscan 15 kHz to 100 kHz |
|
Vertical frequency |
Autoscan 50 Hz to 120 Hz |
|
Resolution range |
Autoscan 640x480 to 1920x1200, 480p, 576p, 720p, 1080i, 1080p |
|
Return loss |
-30 dB @ 5 MHz |
|
DC offset (max. allowable) |
0.5 V |
|
|
|
Video processing |
|
Encoder (for scan converted output) |
10 bit digital |
|
Digital sampling (for program and preview outputs) |
24 bit, 8 bits per color; 13.5 MHz standard (video), 194 MHz standard (RGB) |
|
Colors (for program and preview outputs) |
16.78 million |
|
Horizontal filtering (for scan converted output) |
3 levels |
|
Vertical filtering (for scan converted output) |
3 levels |
|
Encoder filtering (for scan converted output) |
3 levels |
|
|
|
Video output |
|
Number/signal type |
2 scaled RGBHV, RGBS, RGsB, HD YUV component video program outputs
1 scaled RGBHV, RGBS, RGsB, HD YUV component video preview output
1 optional DVI, HDSDI (SMPTE 292 M), or scan converted output (interlaced component video, S-video, composite video) |
|
Connectors |
(2) 15-pin HD (1 for preview output, 1 for program output)
5 BNC female (for program output) |
|
Nominal level |
1 Vp-p for Y of component video and S-video, and for composite video
0.7 Vp-p for RGB and for R-Y and B-Y of component video
0.3 Vp-p for C of S-video |
|
Minimum/maximum levels |
0.0 V to 0.7 Vp-p (RGB)
0.0 V to 1.0 Vp-p (component video, G of RGsB) |
|
Impedance |
75 ohms |
|
Scaled resolution |
640x4801,2,3,4,5,6, 800x6001,2,3,4,5,6, 852x4801,2,3,4,5, 1024x7681,2,3,4, 1024x8521,2,3,4,1024x10241,2,3, 1280x7681,2,3,4, 1280x10241,2,3, 1360x7651,2,3, 1365x7681,2,3, 1365x10241,2, 1366x7681,2,3, 1400x10501,2, 1600x12001,2, HDTV 480p2,10, 576p1,5, 720p1,2,8,9,10, 1080p1,2,7,8,9,10, and 1080i1,2,10
1864x10501,2, 1280x8001,2,3, 1440x9001,2,3, 1680x10501,2, 1080p Sharp2, and 1920x12002*
1 = at 50 Hz ; 2 = at 60 Hz; 3 = at 72 Hz ; 4 = 96 Hz; 5 = 100 Hz; 6 = 120 Hz;
7 = 24 Hz; 8 = 25 Hz; 9 = 30 Hz; 10 = 59.94 Hz |
|
|
* 1920x1200 is available only on units shipped after first quarter of 2009. |
|
Return loss |
-30 dB @ 5 MHz |
|
DC offset |
±25 mV with input at 0 offset (except for RGsB and component video) |
|
Switching type |
Seamless switching (cut or dissolve) |
|
|
|
Sync |
|
Input type |
Autodetect (RGBHV, RGBS, RGsB), and component |
|
Output type |
RGBHV, RGBS, RGsB
Tri-level on Y, R-Y, B-Y channels of component video or bi-level on Y channel of component video (selectable) |
|
Standards |
NTSC 3.58, NTSC 4.43, PAL, SECAM
Optional SDI/HDSDI input: SMPTE 259M-C, SMPTE 292M |
|
Input level |
2.75 V to 5.0 Vp-p for RGBHV or RGBS
0.6 Vp-p for component video tri-level sync
0.3 Vp-p for component video bi-level sync or RGsB |
|
Output level |
TTL: 5.0 V p-p, unterminated |
|
Input impedance |
510 ohms, vertical; 75 ohms, horizontal |
|
Output impedance |
75 ohms |
|
Max. input voltage |
5.0 Vp-p |
|
Polarity |
Positive or negative (selectable) |
|
|
|
Audio |
|
Gain |
Unbalanced output: -6 dB; balanced output: 0 dB |
|
Frequency response |
20 Hz to 20 kHz, ±0.05 dB |
|
THD + Noise |
0.05% @ 1 kHz at +4 dBu and 0 dB gain |
|
S/N |
>83 dB (typical) at maximum output (unweighted) |
|
Crosstalk |
<-80 dB @ 1 kHz, fully loaded |
|
Stereo channel separation |
>90 dB @ 1 kHz |
|
CMRR |
>75 dB @ 1 kHz |
|
|
|
Audio input |
|
Number/signal type |
6 stereo, balanced/unbalanced |
|
Connectors |
(6) 3.5 mm captive screw connectors, 5 pole |
|
Impedance |
>10k ohms unbalanced/balanced, DC coupled |
|
Nominal level |
+4 dBu (1.23 Vrms), -10 dBV (316 mVrms) |
|
Maximum level |
+19.5 dBu, (balanced or unbalanced) at 1% THD+N |
|
Input gain adjustment |
–18 dB to +24 dB |
|
Audio delay compensation (automatic) |
20 ms when scaling RGB computer video or HDTV component video
75 ms when scaling NTSC component video, S-video, or composite video
90 ms when scaling PAL component video, S-video, or composite video |
|
NOTE |
0 dBu = 0.775 Vrms, 0 dBV = 1 Vrms, 0 dBV ≈ 2 dBu |
|
|
|
|
Audio output |
|
Number/signal typ, e |
3 stereo, balanced/unbalanced (2 program, 1 preview) |
|
Connectors |
(3) 3.5 mm captive screw connector, 5 pole |
|
Impedance |
50 ohms unbalanced, 100 ohms balanced |
|
Gain error |
±0.5 dB channel to channel |
|
Maximum level (Hi-Z) |
>+21 dBu, balanced or unbalanced at 1% THD+N |
|
Maximum level (600 ohm) |
>+15 dBm, balanced or unbalanced at 1% THD+N |
|
|
|
Control/remote — switcher |
|
Serial control ports |
1 RS-232/RS-422: 1 rear panel 9-pin female D connector
1 RS-232: 1 front panel 2.5 mm mini stereo jack |
|
Baud rate and protocol |
9600 (default), 19200, 38400, 115200 baud; 8 data bits; 1 stop bit; no parity |
|
Serial control pin configurations |
|
9-pin female D connector |
RS-232: 2 = Tx, 3 = Rx, 5 = GND
RS-422: 2 = Tx-, 3 = Rx-, 5 = GND, 7 = Rx+, 8 = Tx+ |
|
Mini stereo jack |
RS-232: tip = Tx, ring = Rx, sleeve = GND |
|
Ethernet control port |
1 RJ-45 female connector |
|
Ethernet data rate |
10/100Base-T, half/full duplex with autodetect |
|
Ethernet protocol |
ARP, ICMP (ping), IP, TCP, UDP, DHCP, HTTP, SMTP, Telnet |
|
Ethernet default settings |
Link speed and duplex level = autodetected
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off |
|
Web server |
Up to 200 simultaneous sessions
16 MB nonvolatile user memory |
|
Program control |
Extron's control/configuration program for Windows?
Extron's Simple Instruction Set (SIS?)
Microsoft? Internet Explorer? ver. 6 or higher, Netscape? Navigator?, Telnet |
|
|
|
General |
|
Power |
100 VAC to 240 VAC, 50-60 Hz, 45 watts, internal |
|
Temperature/humidity |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
|
Mounting |
|
|
Rack mount |
Yes, with included brackets |
|
Enclosure type |
Metal |
|
Enclosure dimensions |
3.5" H x 17.5" W x 12.0" D (2U high, full rack wide)
(8.9 cm H x 44.4 cm W x 30.5 cm D)
(Depth excludes connectors and knobs. Width excludes rack ears.) |
|
Product weight |
8.5 lbs (3.9 kg) |
|
Shipping weight |
18 lbs (9 kg) |
|
DIM weight |
|
|
USA/Canada |
15 lbs (7 kg) |
|
International |
18 lbs (8 kg) |
|
Vibration |
ISTA 1A in carton (International Safe Transit Association) |
|
Regulatory compliance |
|
|
Safety |
CE, CUL, UL |
|
EMI/EMC |
CE, C-tick, FCC Class A, ICES, VCCI |
|
MTBF |
30,000 hours |
|
Warranty |
3 years parts and labor |
|
